CASEMENT WINDOWS

Designed to address the demands of an ever changing environment, our new 70mm window system is a meticulously crafted statement of style and quality.

FEATURES
GALLERY
DESIGN
SAFETY & SECURITY
SPECIFICATION

BRINGING LIGHT INTO LIVING

Designed for both residential and commercial applications, the thermally efficient 70mm aluminium window system has a wealth of design options making it ideal for use in all homes.

Our system is fabricator friendly to make installation on-site as easy as possible. It can be used in conjunction with our Curtain Walling and Framing Systems offering a complete glazing solution for both new build and refurbishment projects.

KEY FEATURES

  • Slim sightlines
  • Low U Values

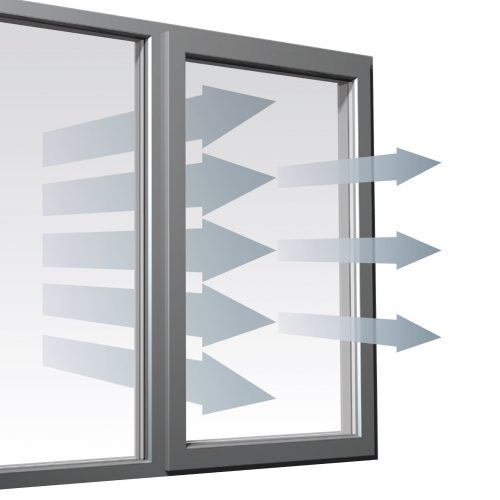

  • Thermal performance
  • Flush internal appearance on casement
  • Ease of fabrication and installation
  • Low maintenance

DESIGNED FOR YOU

We have a range of colours and finishes to compliment your property.

  • Single or dual colour
  • Open out casement (top or side-hung)
  • Individual or composite window styles
  • Cill options
  • Double or triple glazing
  • Opening restrictors

SECURITY & SAFETY

Information coming soon…

SPECIFICATION

Application Residential new build, refurbishment and light commercial.
Window types Open out casement (top or side-hung), fixed light.
Maximum window opening width* Side hung 1000mm • Top hung 1000mm
Maximum window opening height* Side hung 1500mm • Top hung 1200mm

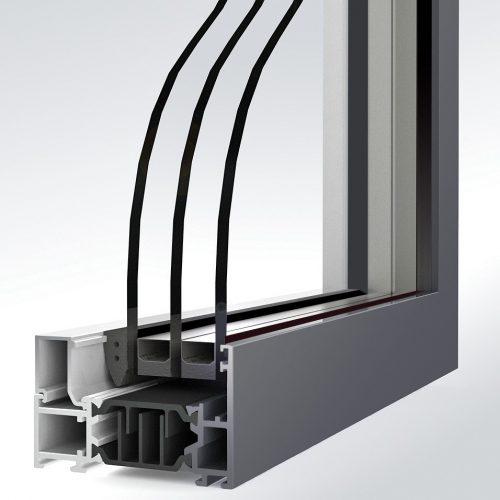

Frame profiles Profiles 70mm deep. 43mm sightlines on fixed profiles.
Odd leg, Curtain Wall.
Corner posts 90 degrees and 135 degrees
Cills Range of options including one piece polyamide.
Jointing Mechanical corner and transom/mullion jointing.

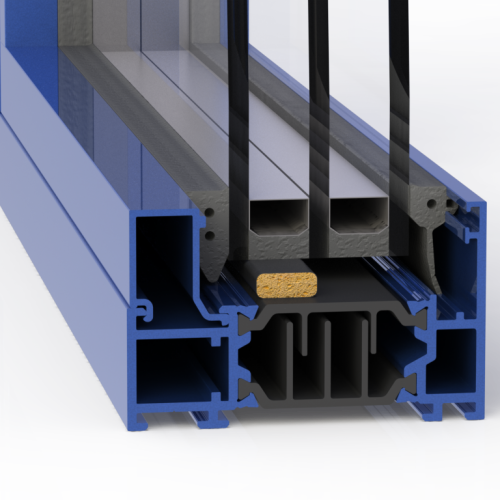

Thermal Performance Polyamide thermally broken profiles - Document L1A, L1B/L2A, L2B compliant.
U-Value As low as 1.2 W/m2K.
Performance Window tested to UK exposure category 1600
Water tightness 600Pa
Air permeability Class 4
Wind resistance Class C4
Safety requirement 2400Pa
Finishes Mill, Etched and Anodised (AA25), Polyester Powder Coat.
Single or dual colour profiles Option
Glazing and infills Will accept double or triple IGU and infill panels 24 – 40mm thick.
Square beaded Internally.
Hardware Nominal 13.5mm cavity accepts most proprietary fittings.
Non-handed friction hinges.
Trickle vents Standard or Slimline.
Locking handles Inline or offset– Black, White, Grey, Graphite, Silver and Gold.
Security Multi-point bi-part espagnolette locking, PAS24 compliant.
Opening restrictors Child and Health Care.
Design standards BS EN 4873
BS EN 6375:1
BS EN 14351
PAS24: 2016
