SLIDING DOORS

LET THERE BE LIGHT

Sliding doors are a space saving solution with the added benefit of letting an abundance of natural light into the home.

Innovative and practical, our lightweight alluminium doors have narrow profile faces which creates a dramatic removable wall, providing uninterrupted views to the outdoors.

Incorporating the latest thermal technologies you can be sure your home will remain safe, secure and thermally efficient.

KEY FEATURES

Double or triple glazing
Made to measure
Soft close options available
8 multipoint security lock and anti-lift blocks as standard ensure the door is secure.
33mm Low Threshold

SLIDING PATIO DOOR SYSTEM

Available as either a simple cost effective inline sliding door or as a piece of statement engineering with the lift & slide gearing. All versions of the doors have the option of a soft closer being installed which prevents the doors being slammed shut and prevents the trapping of fingers, an innovative safety solution and a must have where young children are around.

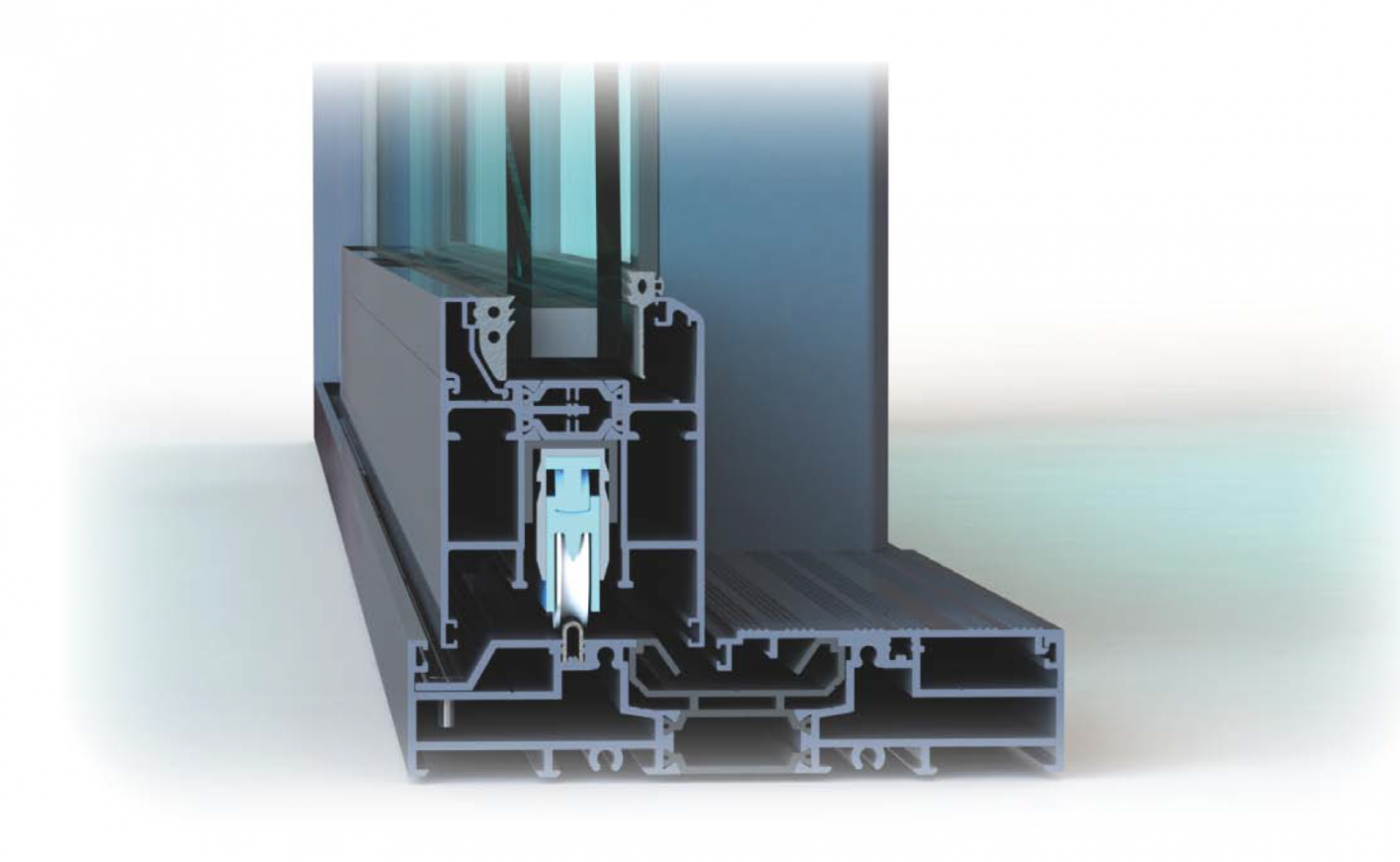

Inline Sliding Door

A simple and efficient patio door system that incorporates all the benefits of a modern thermally efficient aluminium system.
The system is operated with a simple handle, 8 multipoint security lock and anti-lift blocks as standard ensure the door is secure.

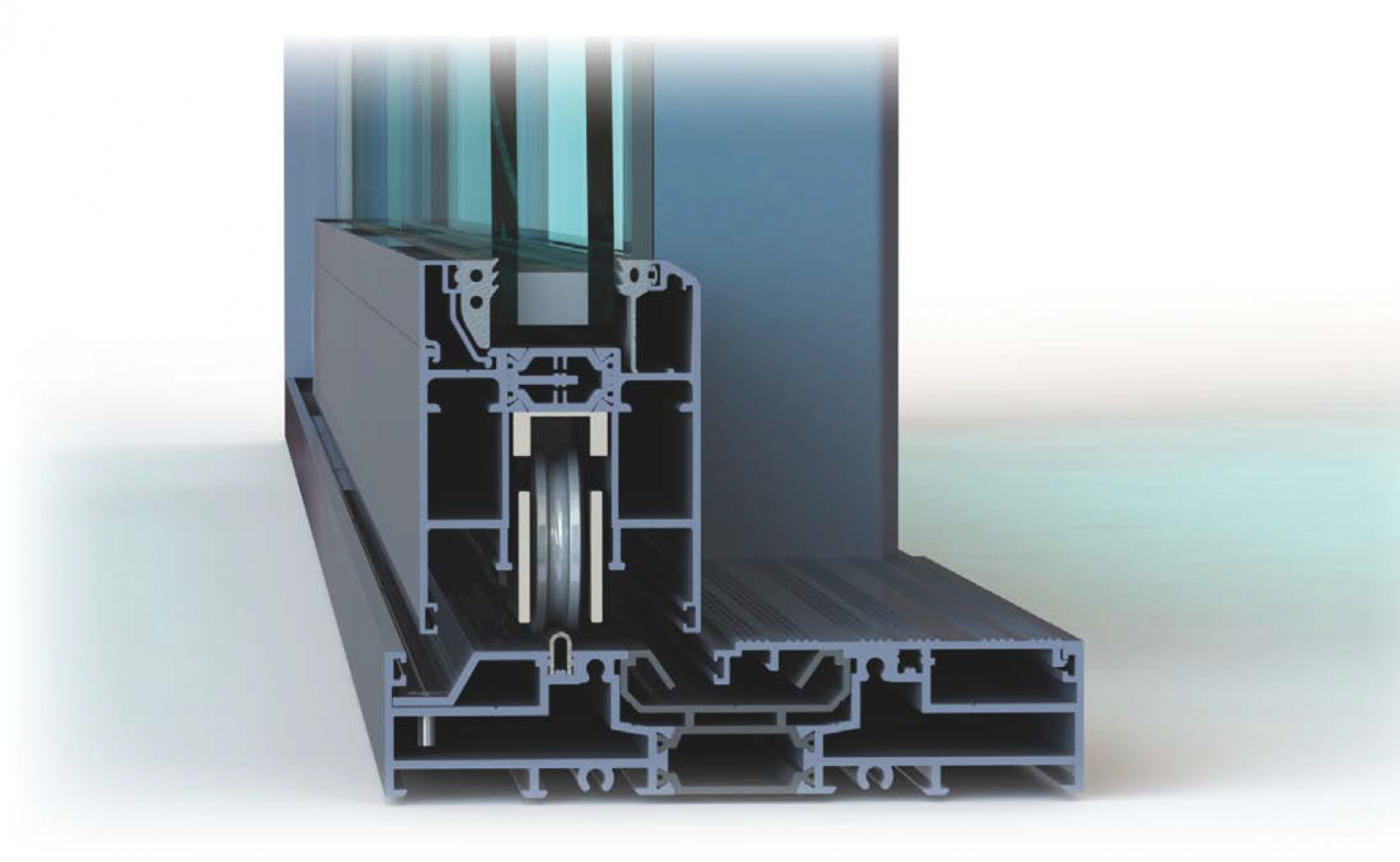

Double Track Lift & Slide

Sophisticated gearing allows the doors to slide effortlessly along the stainless steel track. Sitting on purpose designed rollers the door panes can be up to a maximum of 400kg.
The doors can be secured in an open position to allow natural ventilation into the room with the peace of mind of knowing that the doors cannot be inadvertently pushed shut.

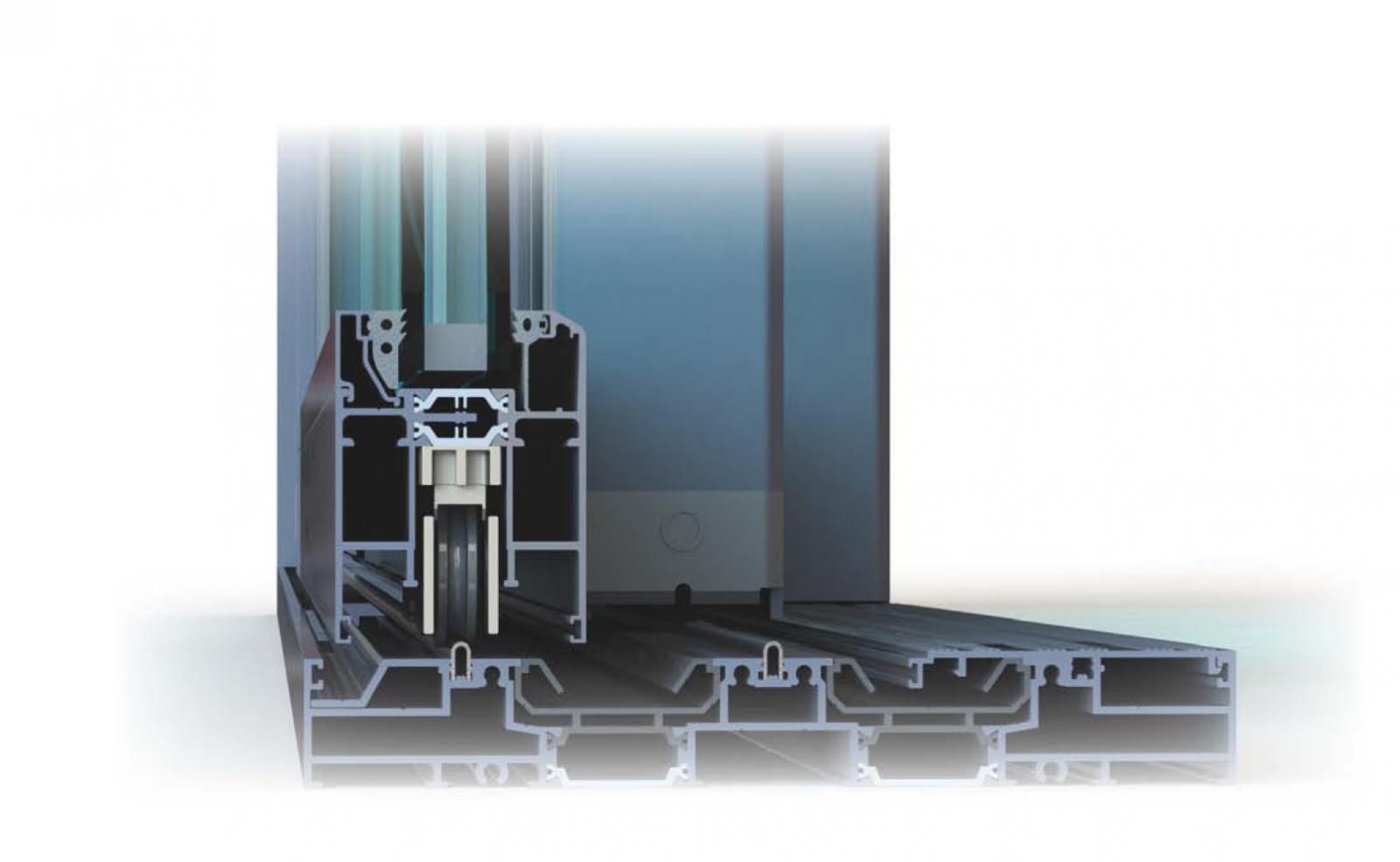

Triple Track Lift & Slide

Ideal for large architectural projects and luxury homes each door can be up to 400kg.
The triple track allows a greater aperture of a room to be effortlessly opened with the ability for 2 doors to be moved seamlessly joining the home and garden.

DESIGNED FOR YOU

We have a range of colours and finishes to compliment your property.

We have a wide range of colours available…. a range of handles and accessories etc etc…

SECURITY & SAFETY

Your security and safety is at the heart of all our products.

The system is operated with a simple handle, 8 multipoint security lock…

Our doors are designed with safety in mind, the bespoke nature of our products means that during installation our fitters will ensure a flush fit, with no trip hazards and a secure finish.

SPECIFICATION

	Inline Sliding	Lift & Slide
Maximum Height	2300mm	2500mm
Maximum Width	2000mm	2100mm
Jointing	Mechanical	Mechanical
Internally Beaded	Yes	Yes
Glazing Thickness	28-42mm	28-42mm
Design Standards	BS EN 4873 BS EN 14351-1 BS EN 6375-1 BS EN12020-2 BS EN 10077-2	BS EN 4873 BS EN 14351-1 BS EN 6375-1 BS EN12020-2 BS EN 10077-2
U-Value	1.6	1.6
